Pre-stained Protein Ladder [X10116]

Product No.：010101001160

Product description： Buffer Description

X10116 is a ready-to-use pre-stained protein ladder containing 10 recombinant proteins (8-180 kDa) with three chromophores; on SDS-PAGE, most bands are blue except the 70 kDa orange-red and 8 kDa green reference bands, and this product cannot be heated above room temperature.

Product

Protein Electrophoresis Series

Pre-stained Protein Ladder

Broad Range High Range Low Range

Unstained Protein Ladder

SDS-PAGE Gel Preparation Kits

Electrophoresis Buffers

Western Blot series

Electrophoretic Transfer Buffer

Membrane Washing Buffer

Other Series

Contact Us

Catalog No.	Pack Size	Price	Quantity
X10116 - 10 x 250 μL	10 x 250 μL	Catalog price:￥3400.00 Your price:
X10116 - 2 x 250 μL	2 x 250 μL	Catalog price:￥850.00 Your price:

Description

The X10116 X-biotech^TM Pre-stained Protein Ladder is a ready to use pre-stained mixture of 10 recombinant proteins ranging from 8 kDa to 180 kDa. Three different chromophores are bound to the proteins, producing a brightly colored ladder. Proteins are covalently coupled with a blue chromophore except for two reference bands (one orange-red at 70 kDa and one green band at 8 kDa, respectively) when separated on SDS-PAGE.

Important Information

● Do not heat the product above room temperature.
● Two reference bands: 70 kDa and 8 kDa
● X10116 contains 10 protein bands of 8, 16.5, 25, 31, 41, 52, 70, 95, 130, and 180 kDa.

Item	Specification
Cat. No.	X10116
Product Size	250 μL × 2/ 250 μL × 10
MW Range	8 - 180 kDa
Band Number	10
Markered Bands	8, 70 kDa
Band Color	Orange-Red/Green/Blue
Storage	4°C for 2 months, -20°C for 2 years

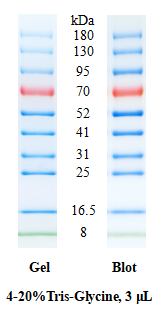

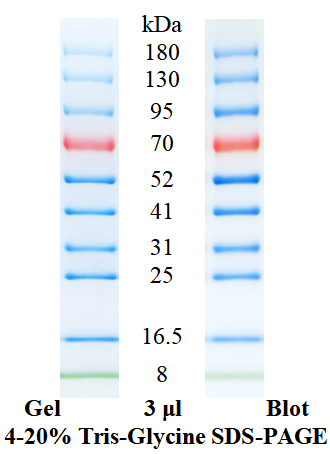

SDS-PAGE band profile of the PageRuler Plus Prestained Protein Ladder

Images are from a 4-20% Tris-glycine gel (SDS-PAGE) and subsequent transfer to membrane.

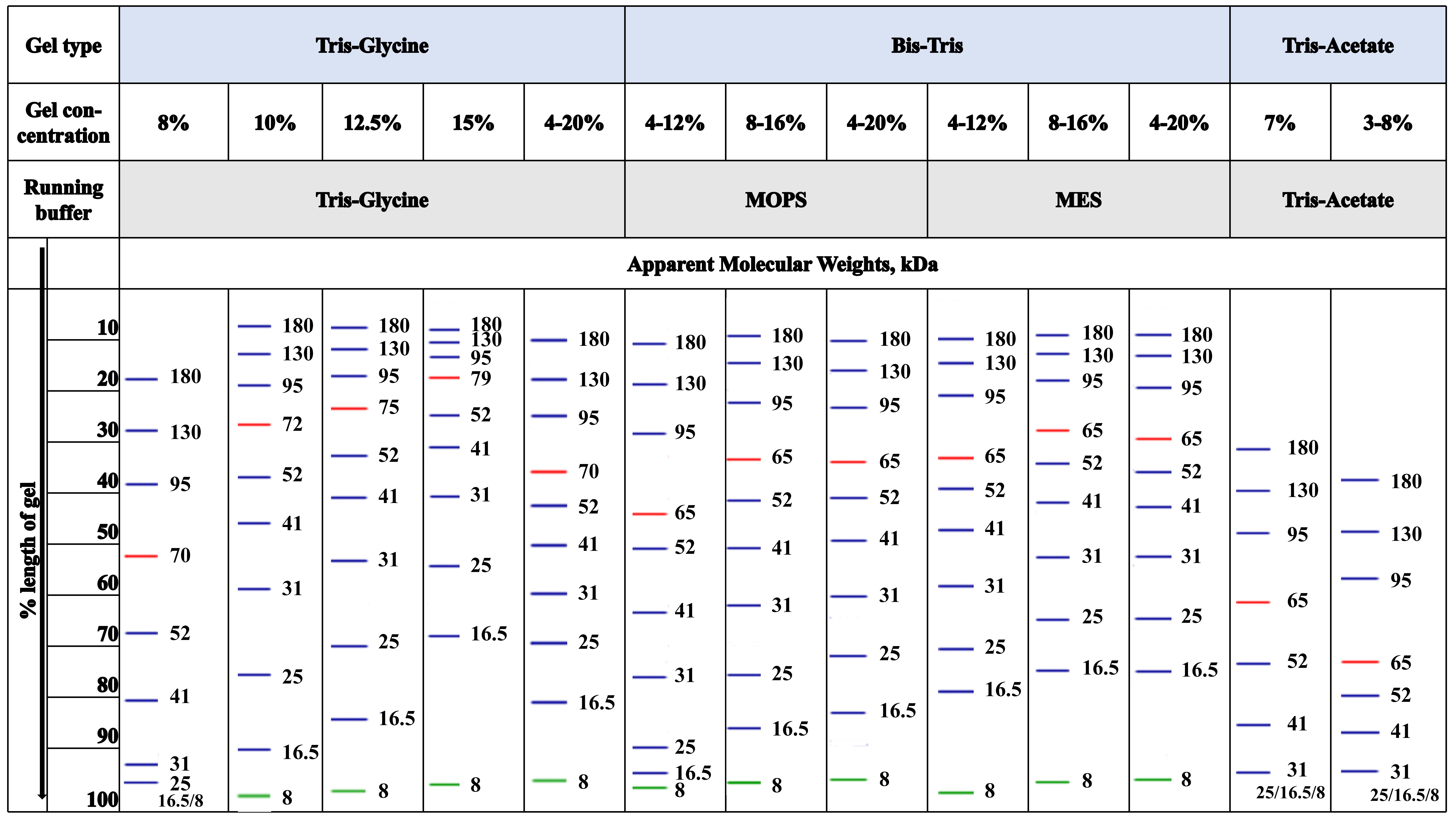

Migration patterns of this Protein Ladder indifferent electrophoretic conditions

The apparent molecular weight of each protein (kDa) has been determined by calibration of each protein against an unstained protein ladder in specific electrophoresis conditions. Migration patterns were determined using commercial precast mini gels.
